Features: Specification:

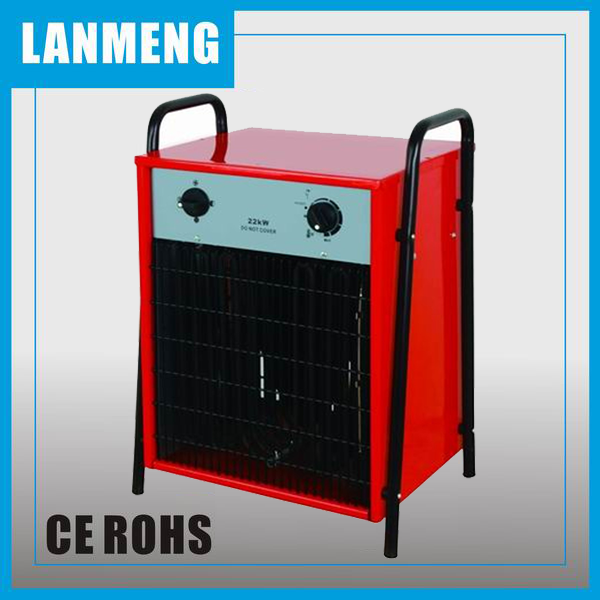

ELECTRIC FAN HEATER :(Square shape)
Feature :
1. Power :22KW
2. Voltage/Hz:  380-400V/50Hz
3. Stainless steel heating element selectable
4. Adjustable thermostat control
5. Overheat protection
6. With fan , cool blow avaliable
7. Whole metal casing by powder against rustiness
8. Insulated  Plastic handle upper, protable to carry
9. Free Standing
10. Protection class IP 44
11. CE/LVD/EMC/ROHS

Specification:

Model number  LXF22
3 Power setting(W) 110/11000/22000
Max . Power    (Kw) 22
                   (Kcal/h) 18900
                    (Btu/h) 75100
Power supply (V/Hz) 380V-50Hz
Air output      (m3/h) 2200
N.w./G.w.      (KGS) 18.00/19.00
Product size      (MM) 430*430*610
Carton size        (MM) 485*480*640
Loading Qty(PCS)
20'/40'/40HQ 145/288/385
